Modelo: Aten VS-92A

Divisor de video de 1 a 2 puertas Media Resolución

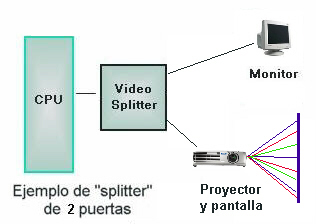

Permite envíar 1 única señal de video VGA simultáneamente a 2 dispositivos de despliegue

VS-92A

Split de 2 puertas

Features

Support ULTRA HIGH 250 MHz video bandwidth
Enhance Video Signals for Distance up to 65m (213")
Daisy Chain enabled
Supports DDC, DDC2, DDC2B at Port 1.
Supports 1920 x 1440 @ 60 Hz
OS Support: Windows 2000, Windows XP, Linux,
Mac and Sun

Aplicaciones:

Public Broadcasting Systems (Stock Market Info, etc.)
Video Conferencing
Education
High Quality Multimedia Presentations

Especificaciones:

Function		VS-92A
Cable Distance		65 m (213")
Signal Type		VGA, SVGA, XGA, UXGA, Multisync
Bandwidth		Up to 250 MHz
Video Connectors	Input	1 x HDB-15 Male
	Output	2 x HDB-15 Female
Resolution		1920x1440 @ 60 Hz
Operating Temperature		5°C ~ 40°C
Storage Temperature		-20°C ~ 60°C
Humidity		0 ~ 80% RH, Non-condensing
Housing		Metal
Dimensions (L x W x H)		130 x 75 x 45 mm
Weight		320 gr
Comsumption (Max)		DC 9V - 0.85W
